6.5″ Oval Grommet Mount Side Turn/Marker & Stop-Tail-Turn Lights

BOARDFREE® Features and Benefits:

  • Solid molded construction of lens and housing creates superior durability and impact resistance
  • Patented in-mold LED lighting solution eliminates the need for a printed circuit board
  • Resistance to corrosion, harsh chemicals and UV exposure
  • Environmentally friendly – No printed circuit boards means no hazardous waste
  • Optimal heat management leads to a longer life expectancy
  • Light exceed FMVSS 108
  • Made in the USA
  • BOARDFREE® is a registered trademark of Innotec Group

Light Specification:

  • ABS and acrylic construction
  • 8 Diodes
  • Sealed and greased male 3 pin amp connector
  • Side turn light meets SAE 1, P2, and P3 specifications for turn signals and side markers
  • Stop-tail-turn light meets SAE S2 and T2 specifications
  • Low stress mounting holes
  • Light sold separately from grommet or as a kit

Grommet Specification:

  • Grommet provides additional protection to the light against vibration and shock
  • Fits in standard standard openings, mounts up to a .25 in. plate
  • Made of UV protected EPDM
  • Grommet sold separately from light or as kit
  • For use with oval grommet mount lights only

Manufactured by Innotec for exclusive distribution by Phillips Industries – A California Corporation

Products

Part #
Description
51-60312
6.5" oval grommet mount stop-tail-turn light, red - excluces grommet, qty. 1
51-60312-16
6.5" oval grommet mount stop-tail-turn light, red - excluces grommet, qty. 16
51-60313
6.5" oval grommet mount side turn/marker light, amber - excludes grommet, qty. 1
51-60313-16
6.5" oval grommet mount side turn/marker light, amber - excludes grommet, qty. 16
51-60500
Mounting grommet for 6.5" oval light, qty. 1
51-60500-25
Mounting grommet for 6.5" oval light, qty. 25
51-60312K
Kit - 6.5" oval grommet mount stop-tail-turn light, red (51-60312) and grommet (51-60500)
51-60313K
Kit - 6.5" oval grommet mount side turn/marker light, amber (51-60313) and grommet (51-60500)

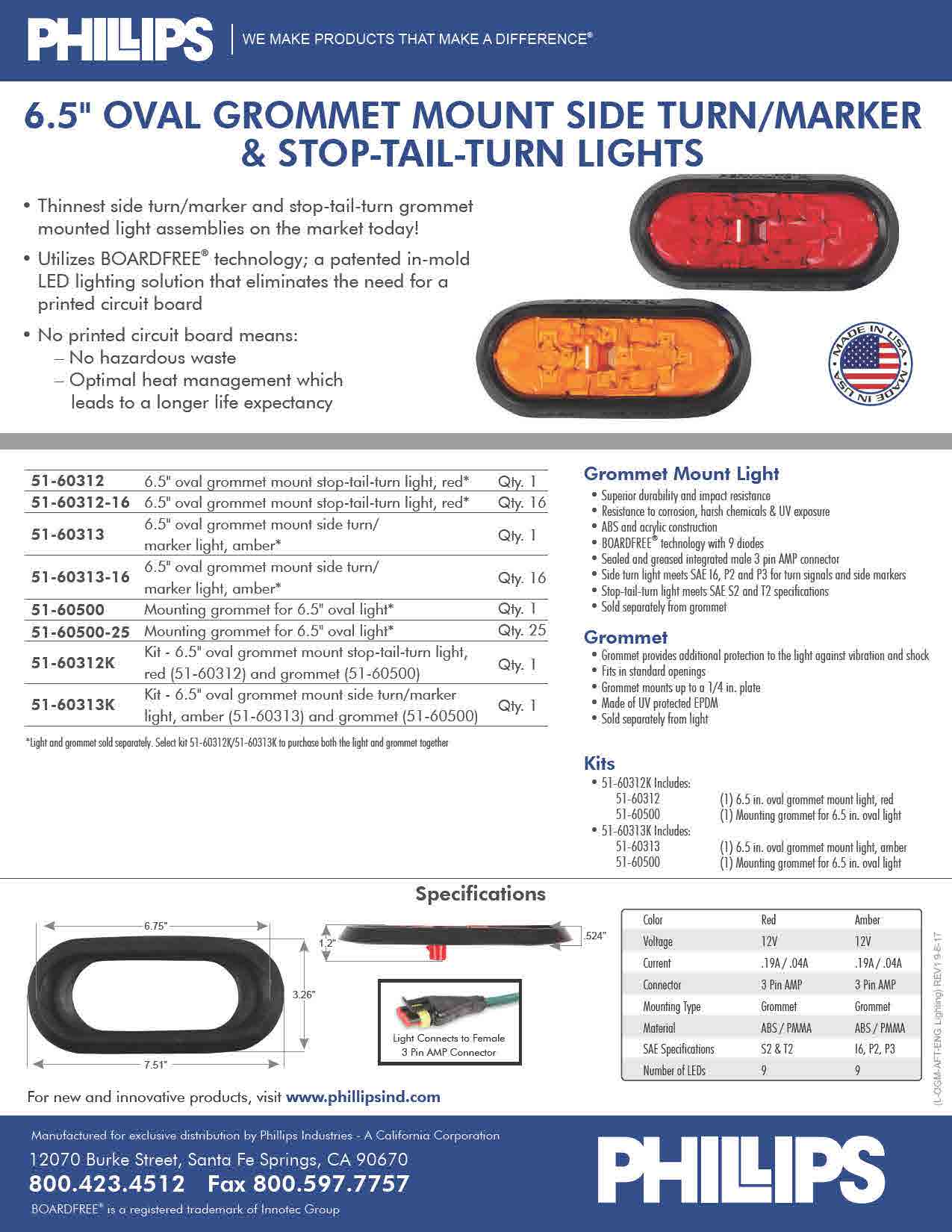

Product Resources
Aug 9, 2017

Oval Grommet Mount
