CLEAR-VU™ Window Step-Down Connectors

  • CLEAR-VU™ crystal-clear tubing provides unparalleled visual inspection
  • Window ensures the wire is stripped to the proper length and is fully seated to wire stop
  • Color-coded stripes identify wire gauge size to use and where to crimp the connector
  • Crimp provides mechanical reliability for excellent conductivity
  • Waterproof seal prevents wire corrosion …keeps out moisture and road salts
  • Seamless barrel ensures superior crimp performance
  • Wire-stop prevents over-insertion of wire
  • Wire gauge imprint simplifies wire size identification
  • RoHS compliant

*Heat Required

Products

Part #
Description
1-1616
CLEAR-VU™, 12-10 ga. to 8 ga., yellow and red stripes, polybag, qty. 25
1-1617
CLEAR-VU™, 16-14 ga. to 12-10 ga., blue and yellow stripe, polybag, qty. 25
1-1618
CLEAR-VU™, 22-18 ga. to 16-14 ga., red and blue stripe, polybag, qty. 25
Product Resources
Jul 23, 2016

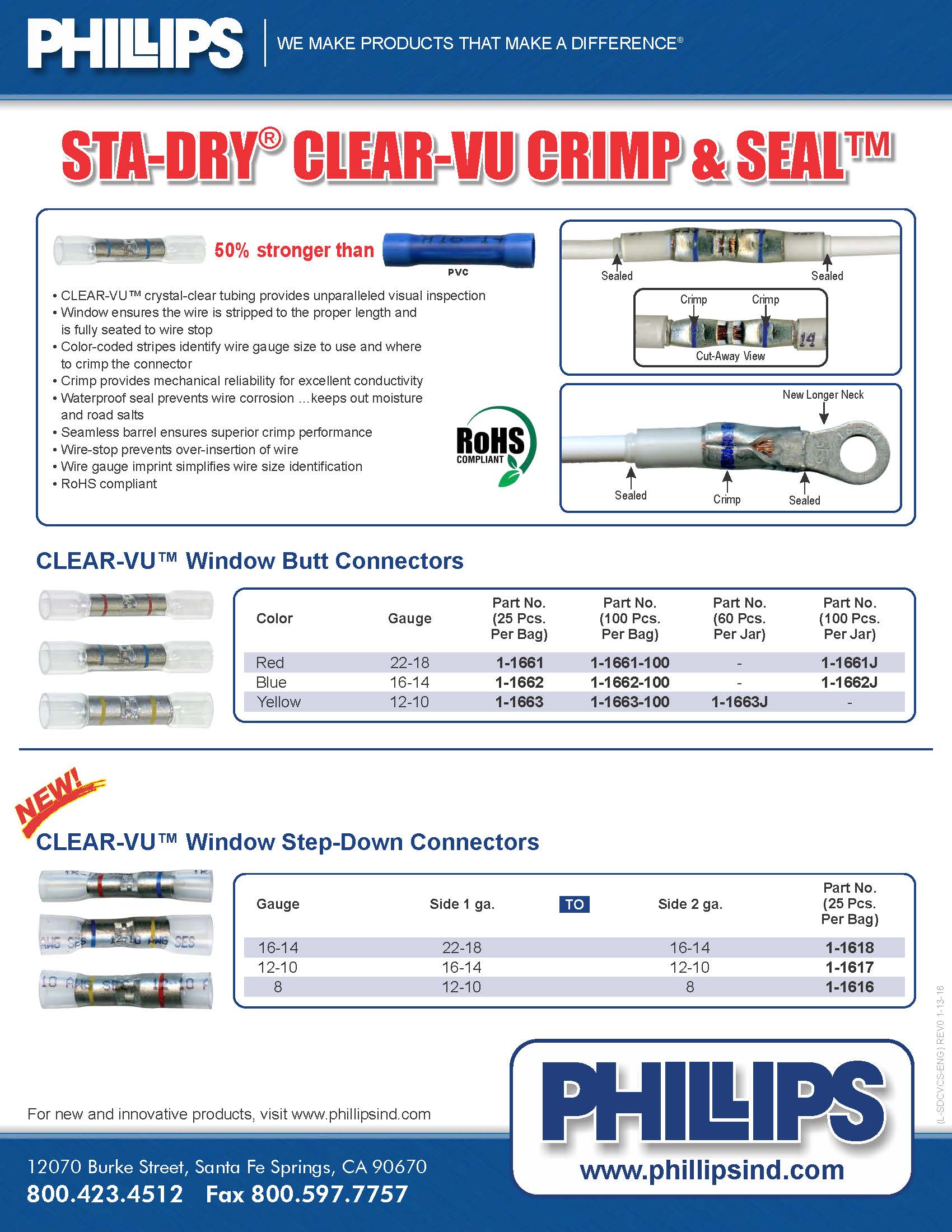

STA-DRY®CLEAR-VU CRIMP & SEAL™

Nov 18, 2014

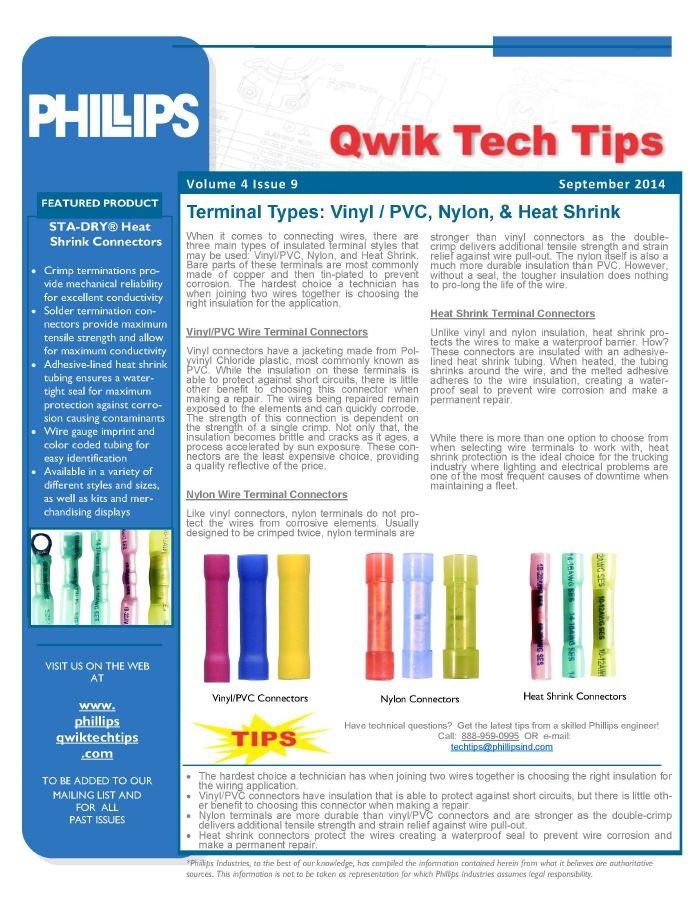

Terminal Types: Vinyl / PVC, Nylon, & Heat Shrink
